ResoKit basic example

This notebook is an example usage of the ResoKit package.

We will download a dataset and analyze the system Kepler-55. This is a 5 planets and 2 stars system.

Import ResoKit and the necessary packages

[1]:

import resokit as rk

Download the datasets

EU dataset

[2]:

rk.datasets.download("eu", soft=True)

Zip file /home/egianuzzi/.resokit_data/exoplanet_eu.zip already exists. Set overwrite=True to force the download.

Binary stars datasets

[3]:

rk.datasets.download_binary("all", return_data=False)

File /home/egianuzzi/.resokit_data/plan_bin500aun.txt already exists. Set overwrite=True to force the download.
File /home/egianuzzi/.resokit_data/plan_circ.txt already exists. Set overwrite=True to force the download.

[3]:

{'s': None, 'p': None}

Load the system

[4]:

kepler55 = rk.load.from_eu("Kepler-55", exact_match=False)

Looking for star system 'Kepler-55' in eu database.
 Loading the entire dataset...
  Reading exoplanet_eu.csv directly from /home/egianuzzi/.resokit_data/exoplanet_eu.zip...
Updated stored index in memory.
Stored dataset in memory.
 Found a very close star match: 'Kepler-55 A' in eu dataset.
 Loading the almost exact match...
Checking if 'Kepler-55 A' is a binary system...
 Binary system found in ['Kepler55'], in s-type binary orbit.
Creating system 'Kepler-55'.
 Using binary star 'Kepler-55'.
 5 planets created.

[5]:

kepler55

[5]:

StaticSystem: 'Kepler-55'
 Star 1:
  Kepler-55 A
 Planets:
  Kepler-55 Ad
  Kepler-55 Ae
  Kepler-55 Af
  Kepler-55 Ab
  Kepler-55 Ac
 Star 2:
  Kepler-55 B
 [binary system]
from 'eu' data source.

Examination

Mass - Radius - Period

[6]:

kepler55.get_item(["mass", "radius", "P"], error=True)

[6]:

	mass	mass_err_min	mass_err_max	radius	radius_err_min	radius_err_max	P	P_err_min	P_err_max
Kepler-55 Ad	NaN	NaN	NaN	0.1650	0.0045	0.0116	2.211117	0.000003	0.000003
Kepler-55 Ae	NaN	NaN	NaN	0.1445	0.0045	0.0098	4.617491	0.000009	0.000009
Kepler-55 Af	NaN	NaN	NaN	0.1561	0.0054	0.0098	10.198493	0.000032	0.000032
Kepler-55 Ab	0.1353	0.0570	0.1170	0.1700	0.0054	0.0116	27.954134	0.000173	0.000173
Kepler-55 Ac	0.2196	0.0576	0.1026	0.1650	0.0045	0.0116	42.140609	0.000314	0.000314

Binary

Mass - Period

[7]:

print(kepler55.star.mass, kepler55.star.P)

1.115 35115382.724187925

Estimations

Period ratios

[8]:

kepler55.period_ratios_

[8]:

	Kepler-55 Ad	Kepler-55 Ae	Kepler-55 Af	Kepler-55 Ab	Kepler-55 Ac	Kepler-55 B
Kepler-55 Ad	1.000000e+00	2.088307e+00	4.612371e+00	1.264254e+01	19.058516	1.588129e+07
Kepler-55 Ae	4.788569e-01	1.000000e+00	2.208666e+00	6.053967e+00	9.126301	7.604863e+06
Kepler-55 Af	2.168082e-01	4.527621e-01	1.000000e+00	2.741006e+00	4.132043	3.443193e+06
Kepler-55 Ab	7.909803e-02	1.651810e-01	3.648295e-01	1.000000e+00	1.507491	1.256179e+06
Kepler-55 Ac	5.246998e-02	1.095734e-01	2.420110e-01	6.633538e-01	1.000000	8.332908e+05
Kepler-55 B	6.296719e-08	1.314948e-07	2.904281e-07	7.960652e-07	0.000001	1.000000e+00

[9]:

# Calculate as fractions
kepler55.period_ratio(use_binary=False, verbose=False,
                    fraction_kwargs={"max_iter":3})

[9]:

	Kepler-55 Ad	Kepler-55 Ae	Kepler-55 Af	Kepler-55 Ab	Kepler-55 Ac
Kepler-55 Ad	(1, 1)	(71, 34)	(9, 2)	(25, 2)	(3583, 188)
Kepler-55 Ae	(11, 23)	(1, 1)	(11, 5)	(115, 19)	(73, 8)
Kepler-55 Af	(1, 5)	(4, 9)	(1, 1)	(8, 3)	(33, 8)
Kepler-55 Ab	(1, 13)	(18, 109)	(1, 3)	(1, 1)	(3, 2)
Kepler-55 Ac	(17, 324)	(7, 64)	(7, 29)	(1, 2)	(1, 1)

Mass estimation

[10]:

kepler55.estimate_mass(err_method=2)

[10]:

	mass	mass_err_min	mass_err_max
Kepler-55 Ad	0.012377	0.000568	0.001513
Kepler-55 Ae	0.009881	0.000517	0.001164
Kepler-55 Af	0.011265	0.000654	0.001227
Kepler-55 Ab	0.135300	0.057000	0.117000
Kepler-55 Ac	0.219600	0.057600	0.102600

Hill radii estimation

[11]:

kepler55.estimate_hill_radius(deep_estimate=True, circular=True)

[11]:

Kepler-55 Ad    0.000525
Kepler-55 Ae    0.000796
Kepler-55 Af    0.001410
Kepler-55 Ab    0.006317
Kepler-55 Ac    0.009763
Name: hill, dtype: float64

Plotting

Mass-Radius

[12]:

# First, we create a mock-system with estimated masses (to avoid NaNs)
k55_mock = kepler55.estimate_mass(new_system=True)

Setting mass to 0.012377252190157345 in planet Kepler-55 Ad.
Setting mass to 0.009881071481254833 in planet Kepler-55 Ae.
Setting mass to 0.011265218506422266 in planet Kepler-55 Af.
Setting mass to 0.1353 in planet Kepler-55 Ab.
Setting mass to 0.2196 in planet Kepler-55 Ac.

[13]:

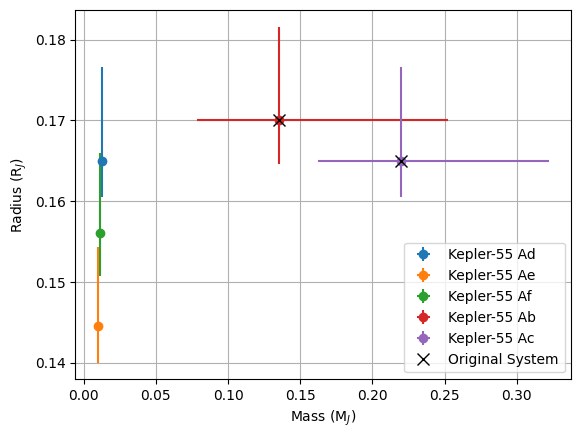

ax = k55_mock.plot("mass", "radius", error_x=True, error_y=True)
kepler55.plot("mass", "radius", label="Original System",
              plot_kwargs={"fmt":"x", "color":"black", "ms":8})
ax.legend(loc=4)
ax.grid()
ax.set_xlabel("Mass (M$_J$)")
ax.set_ylabel("Radius (R$_J$)")

[13]:

Text(0, 0.5, 'Radius (R$_J$)')

../_images/tutorials_basic_example_28_1.png

Period ratios

[14]:

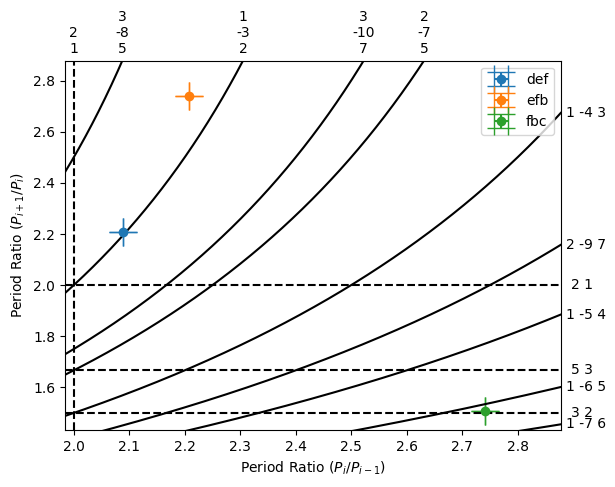

ax = kepler55.plot_triplet(error=True, capsize=10)
ax.legend()
ax.set_xlabel("Period Ratio ($P_i/P_{i-1}$)")
ax.set_ylabel("Period Ratio ($P_{i+1}/P_i$)")

[14]:

Text(0, 0.5, 'Period Ratio ($P_{i+1}/P_i$)')

../_images/tutorials_basic_example_30_1.png

Add extra planet

[15]:

a = 2 ; b = -7 ; c = 5
kepler55.planet(2).P * (-c / ( a * kepler55.period_ratio(2,1) + b))

[15]:

np.float64(19.744096742921926)

[16]:

# We use the 4rth planet (i=3) as proxy
pl3 = kepler55.planet(3)
new_planet = pl3.set_attr("P", 19.74409)
new_planet = new_planet.set_attr("name", "invented i")

[17]:

# Create new system
new_k55 = kepler55.add_planet(new_planet)
new_k55.period_ratios_

Planet invented i added.

[17]:

	Kepler-55 Ad	Kepler-55 Ae	Kepler-55 Af	invented i	Kepler-55 Ab	Kepler-55 Ac	Kepler-55 B
Kepler-55 Ad	1.000000e+00	2.088307e+00	4.612371e+00	8.929464e+00	1.264254e+01	19.058516	1.588129e+07
Kepler-55 Ae	4.788569e-01	1.000000e+00	2.208666e+00	4.275935e+00	6.053967e+00	9.126301	7.604863e+06
Kepler-55 Af	2.168082e-01	4.527621e-01	1.000000e+00	1.935981e+00	2.741006e+00	4.132043	3.443193e+06
invented i	1.119888e-01	2.338670e-01	5.165339e-01	1.000000e+00	1.415823e+00	2.134340	1.778526e+06
Kepler-55 Ab	7.909803e-02	1.651810e-01	3.648295e-01	7.063031e-01	1.000000e+00	1.507491	1.256179e+06
Kepler-55 Ac	5.246998e-02	1.095734e-01	2.420110e-01	4.685288e-01	6.633538e-01	1.000000	8.332908e+05
Kepler-55 B	6.296719e-08	1.314948e-07	2.904281e-07	5.622633e-07	7.960652e-07	0.000001	1.000000e+00

[18]:

new_k55.period_ratio(fraction_kwargs={"max_error":1e-2}, verbose=False)

[18]:

	Kepler-55 Ad	Kepler-55 Ae	Kepler-55 Af	invented i	Kepler-55 Ab	Kepler-55 Ac	Kepler-55 B
Kepler-55 Ad	(1, 1)	(23, 11)	(23, 5)	(9, 1)	(38, 3)	(19, 1)	(15881286, 1)
Kepler-55 Ae	(11, 23)	(1, 1)	(11, 5)	(17, 4)	(6, 1)	(64, 7)	(7604862, 1)
Kepler-55 Af	(5, 23)	(5, 11)	(1, 1)	(29, 15)	(11, 4)	(29, 7)	(3443193, 1)
invented i	(1, 9)	(4, 17)	(15, 29)	(1, 1)	(17, 12)	(15, 7)	(1778526, 1)
Kepler-55 Ab	(3, 38)	(1, 6)	(4, 11)	(12, 17)	(1, 1)	(3, 2)	(1256178, 1)
Kepler-55 Ac	(1, 19)	(7, 64)	(7, 29)	(7, 15)	(2, 3)	(1, 1)	(833290, 1)
Kepler-55 B	(1, 15881286)	(1, 7604862)	(1, 3443193)	(1, 1778526)	(1, 1256178)	(1, 833290)	(1, 1)

[19]:

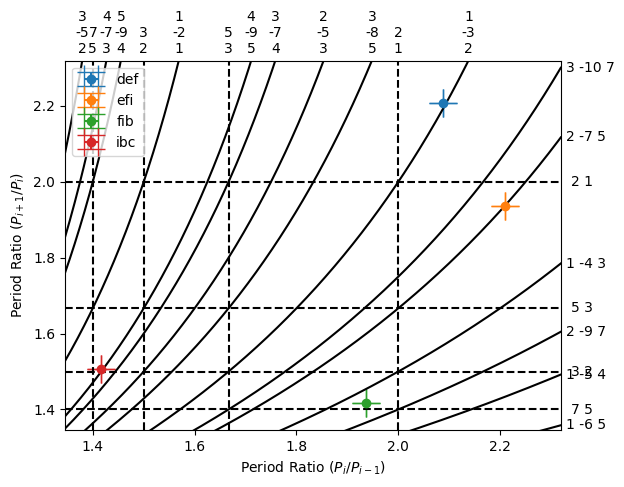

ax = new_k55.plot_triplet(error=True, capsize=10)
ax.legend()
ax.set_xlabel("Period Ratio ($P_i/P_{i-1}$)")
ax.set_ylabel("Period Ratio ($P_{i+1}/P_i$)")

[19]:

Text(0, 0.5, 'Period Ratio ($P_{i+1}/P_i$)')

../_images/tutorials_basic_example_36_1.png
